Wiring

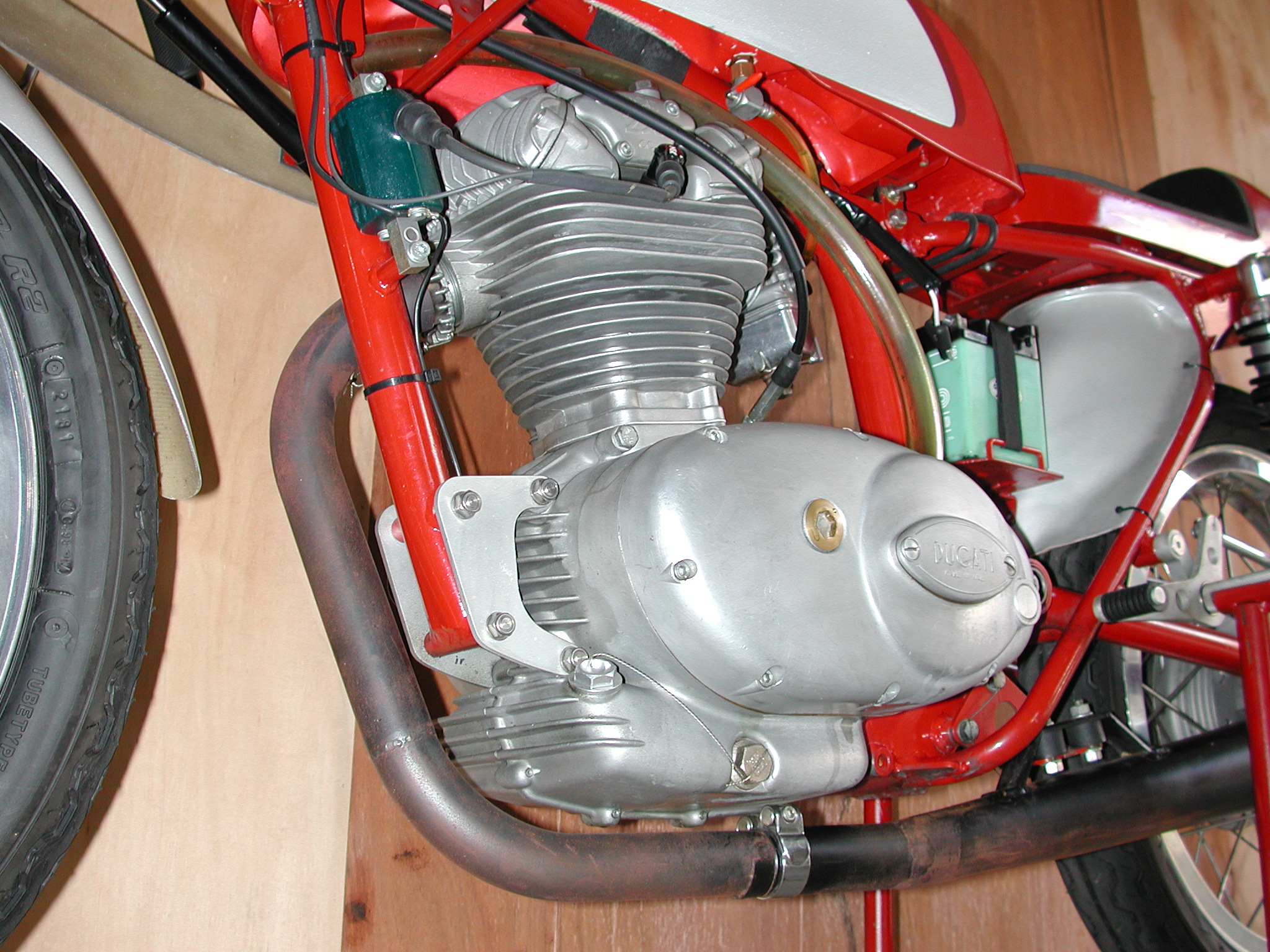

Coil Location

Scitsu Tach

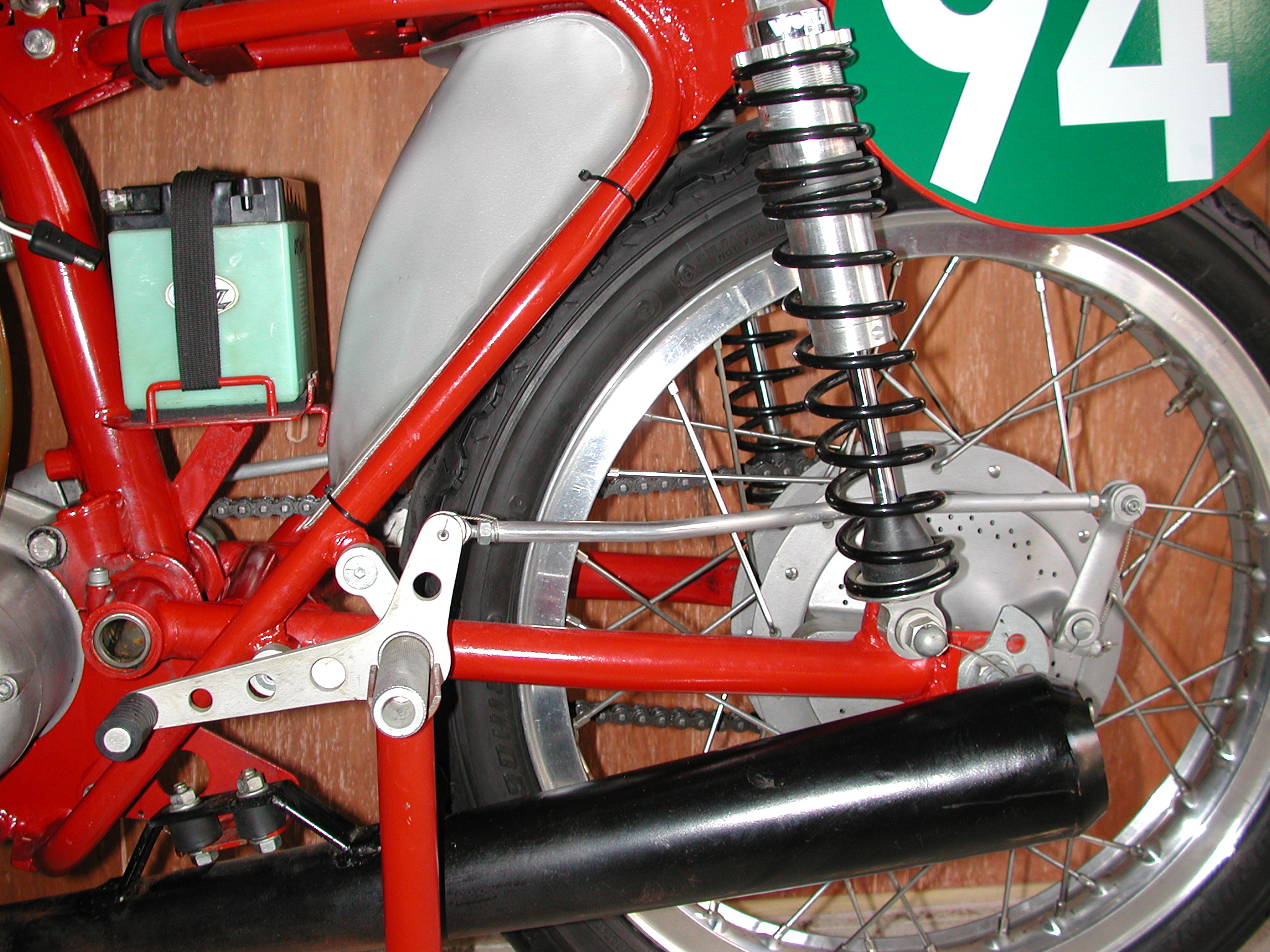

Battery Location

  • Use 14 gauge wire minimum and solder all connection. Use shrink fit tubing over the wire and connector ends, combining multiple wires, to give added protection.
  • Battery YUASA 12N5.5-3B
  • Coil: Dyna DC3-1 Green 3 Ohm
  • Spark Plug: NGK B7HS, B8HS, or B9HS. Use copper core wire for the spark plug lead.
  • Ignition Trigger: Use stock points and condenser with fixed advance or Dyna S Electronic Trigger.
  • Kill Switch: Storz Performance a chrome kill button from part #03063.
  • Tack: Scitsu Electronic Tachometer: code White. RPM Scale: 0 to 10,000.

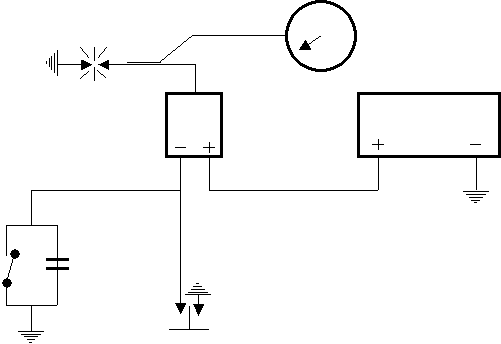

    • Electrical Schematic
